T1-40G-AOC

  • Up to 40Gbps links
  • Full duplex 4 channel 850nm parallel active optical cable
  • Hot-pluggable QSFP+ form factor
  • Operating data rate up to 10.3125Gbit/s per Lane
  • Single +3.3V power supply
  • Maximum 1.5W operation power
  • Compliant with SFF 8436
  • Digital Diagnostic Monitoring (DDM)
  • Complies with RoHS directive (2002/95/EC)
Applications

40G Ethernet

,

Data Center
Ordering Information

Part number: T1-40G-AOC-XXM
Category:
Overview

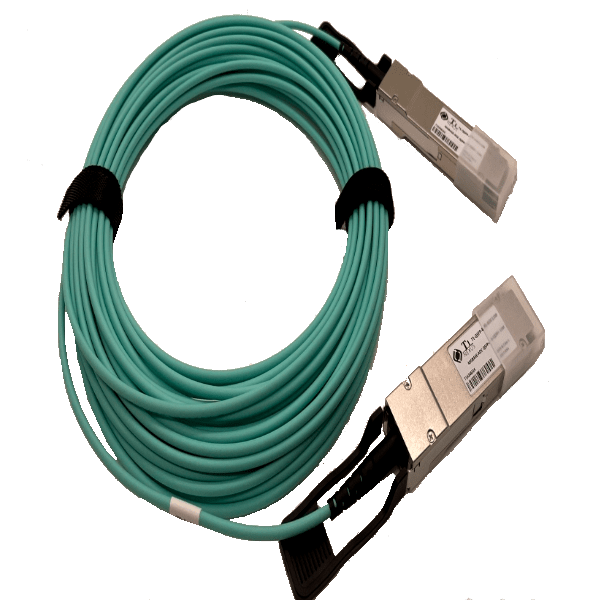

The T1-40G-AOC-M active optic cable is a high-performance, low-power consumption, long-reach interconnect solution supporting 40G Ethernet. It is QSFP MSA and IEEE P802.3ba compliant. The QSFP+ AOC is an assembly of 4 full-duplex lanes, where each lane can transmit data at rates of 10.3125Gb/s, providing an aggregated rate of 41.25Gb/s. The 40G QSFP+ AOC is one kind of parallel transceiver that provides increased port density and total system cost savings.

Specifications

Get the T1-AOC-40G-AOC-XXM specifications sheet including the following characteristics:

Regulatory Compliance Absolute Maximum Ratings
Recommended Operating Conditions and Electrical Characteristics Recommended Interface Circuit
Electrical Characteristics Recommended Power Supply Filter
Mechanical Dimensions ESD
Electrical Pad Layout Pin Assignment and Description

DOWNLOAD SPECIFICATIONS SHEET

Quality Certification

QUALITY & WARRANTY

ISO and TL9000 Quality with a Lifetime Warranty

We are proud to offer industry-leading products that meet ISO and TL9000 standards and are backed by a lifetime warranty.
