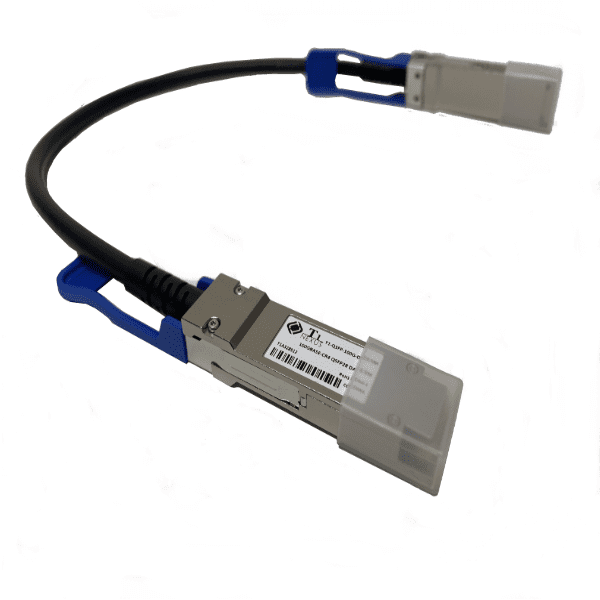

T1-DAC-100G

  • Up to 100Gb bi-directional data links
  •  Compliant with QSFP+ MSA specifications
  •  Fully Compliant with IEEE802.3bj specifications
  •  AC coupled inputs and outputs
  •  100 Ohm differential impedance
  •  All-metal housing for superior EMI performance
  •  Single power supply 3.3V, low power consumption
  •  RoHS Compliance
  •  Operating temperature range: 0℃ to 70℃
Applications

100G Ethernet

,

Serial Data Transmission
Ordering Information

Part number: T1-DAC-100G QSFP28
Category:
Overview
The T1-DAC-100G QSFP28 direct-attach cable is suitable for very short distances and offers a highly cost-effective way to establish a 40Gbps link between QSFP+ ports. QSFP+ direct-attached cables are designed for high-density cabling interconnect systems and are also fully compliant with QSFP+ MSA and support the bandwidth transmission requirements as defined by IEEE802.3ba (40Gbps).
Specifications

Get the T1-DAC-100G QSFP28 specifications sheet including the following characteristics:

General Specifications Mechanical Dimensions
Mechanical Specification Electrical Pad Layout
Pin Assignment

DOWNLOAD SPECIFICATIONS SHEET

Quality Certification

QUALITY & WARRANTY

ISO and TL9000 Quality with a Lifetime Warranty

We are proud to offer industry-leading products that meet ISO and TL9000 standards and are backed by a lifetime warranty.

lifetime-warranty
iso-logo
T1-Logo-TL900 Warranty
