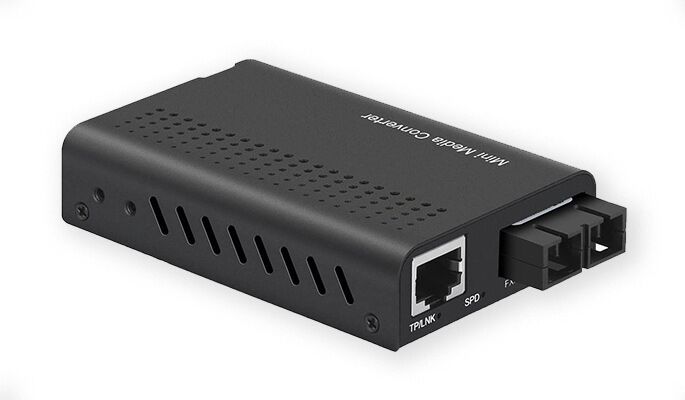

T1-MMC-2212-M8S05
- 850nm, 1310nm, 1490nm and 1550nm wavelength conversion, with EDFA optical amplification and
dispersion management, to extend the transmission distance - Supporting Jumbo frame
- Support SAN, LAN, WAN, point to point transmission
- Proved Multi-data & multi-rate interfaces, to solve a variety of optical fiber resource constraints
problem in network - Transparent Transport and very low delay Support ITUT prescribed DWDM/CWDM wavelength
- Support hot plugging
- Full State Led display
- Easy installation
| Ordering Information |
T1-MMC-2212-M8S05 |
|---|
Overview
The T1Nexus T1-MMC-2212-M8S05 is high-performance 125M~11.7G optical signals Repeaters, Using Optical – Electrical – Optical wavelength conversion, realize the optical signal equilibrium amplification, clock extraction and optical regeneration, and with WDM (DWDM/CWDM) technology, can achieve optical signals transmission in a
single fiber by single or multiple way over a long distance. On the existing network infrastructure, it can quickly improve the communication capacity, expand the bandwidth, while using low cost and highly cost-effective solutions to manage and operate the system.
Specifications
Get the T1-MMC-2212-M8S05 specifications sheet including the following characteristics:
Transmission Mode 125Mb/s-11.7G
Transmission Distance SFP+
Fiber: MM 500m/2km, SM: 20/40/60/80/120km
DIP Switches
ALS (optional)
LFP (optional)
Loop (optional)
Input Power Requirements Input voltage: DC 5-12V, 1.4/0.6A
Power consumption: Full-load<7W
Maximum Packet Forwarding Rate 14,880,950/S
Environmental Requirement
Operating Temperature: 0℃~50℃
Storage Temperature: -10℃~70℃
Relative Humidity: 5%~95% (non-condensation)
MTBF: 50,000 h
Mechanical Structure
Enclosure: Metal
Case Material: Iron
Dimensions: 95mm(D)×60mm(W)×20mm(H)
Weight: 120g
Warranty 1 Year
Emissions FCC Class A, CE Class A
