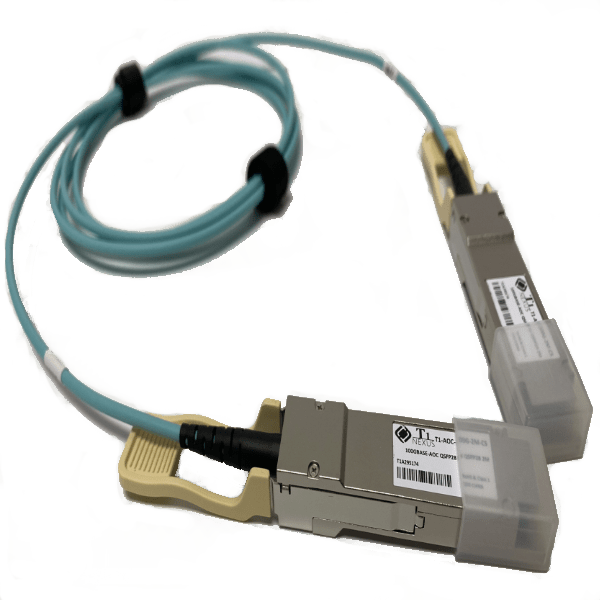

T1-AOC-100G
- Up to 100Gbps links
- 4 independent Lanes 850nm VCSEL
- QSFP28 MSA compliant
- PD Array with linear Amplifier
- I2C interface with DDM
- Positive power supply lines: 3.3 V
- Maximum link length of 70m/100m on OM3/OM4 MMF
- Power consumption (Each End): <3.5W
- Operating case temperature range: 0 to 70 deg C
- RoHS 6 compliant
| Applications |
100G Ethernet ,High-performance computing interconnect |
|---|---|
| Ordering Information |
Part number: T1-AOC-100G-xxxM |
Overview
The T1-AOC-100G-xxxM is a hot-pluggable 3.3V QSFP28 active optical cable (AOC) transceiver module for the application of 100GBASE high-speed communication equipment. Data is transmitted with aggregate bandwidth of 4×25.78Gb/s by four 850nm wavelengths with a transmission distance is up to 70m/100m OM3/OM4.
Specifications
Get the T1-AOC-100G-M specifications sheet including the following characteristics:
| Regulatory Compliance | Absolute Maximum Ratings |
| Recommended Operating Conditions and Electrical Characteristics | Recommended Interface Circuit |
| Electrical Characteristics | Cable Specification |
| Block Diagram of Transceiver | Digital Diagnostic Functions |
| Mechanical Dimensions | Electrical Pad Layout |
| Pin Assignment and Description | ESD |
