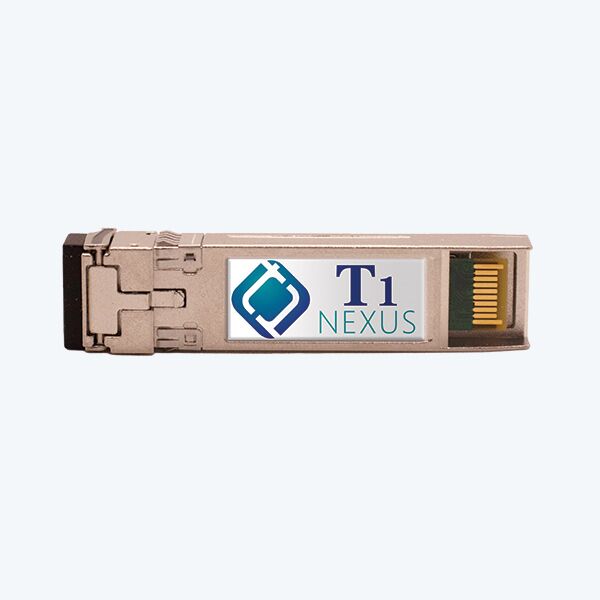

T1-SFP-10G-SR

  • Hot-pluggable SFP+ footprint
  • 850nm VCSEL laser and PIN photodiode, Up to 300m for OM3-MMF transmission
  • Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
  • Compatible with RoHS
  • Single +3.3V power supply
  • Power dissipation <1W
  • Real-Time Digital Diagnostic Monitoring
  • Operating case temperature: 0 to +70°C
Applications

10 Gigabit Ethernet

,

Supports 10M/100M/1G/2.5G/5G data rates

Ordering Information

Part number: T1-SFP-10G-SR

Categories: ,
Overview

T1-SFP-10G-SR is a high-performance, cost-effective module. The transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA), and an MCU control unit. All modules satisfy class 1 laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Specifications

Get the T1-SFP-10G-SR specifications sheet including the following characteristics:

Regulatory Compliance Absolute Maximum Ratings
Recommended Operating Conditions and Power Supply Requirements Optical Characteristics
Digital Diagnostic Functions Recommended Circuit
Mechanical Dimension Electrical Pad Layout
Pin Assignment

REQUEST SPECIFICATIONS SHEET

Quality Certification

QUALITY & WARRANTY

ISO and TL9000 Quality with a Lifetime Warranty

We are proud to offer industry-leading products that meet ISO and TL9000 standards and are backed by a lifetime warranty.
