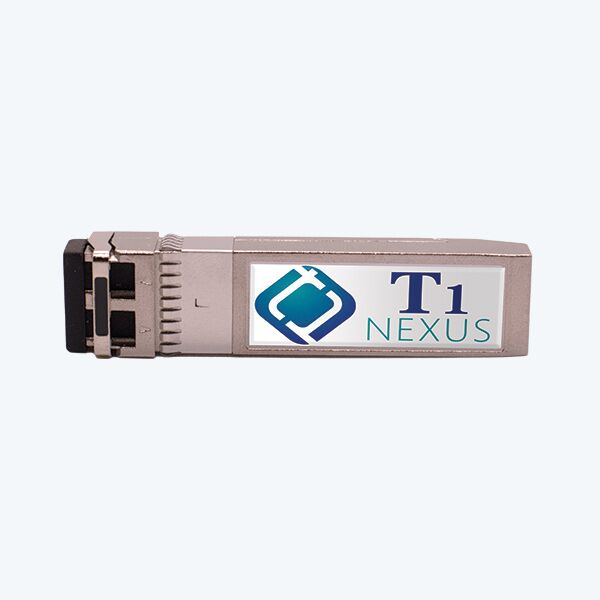

T1-SFP-10G25G-SR

  • Support data rate up to 25.78Gbps
  • 850nm VCSEL
  • I2C interface with DDM
  • Positive power supply lines: 3.3 V
  • Distance up to 100m @50 / 125 um OM4
  • Distance up to 70m @50 / 125 um OM3
  • Power Dissipation < 1.0W
  • Operating Case Temperature Standard: 0℃~+70℃
  • RoHS 6-compliant
  • Multimode operation
Applications

10GBASE-ZR/ZW

Ordering Information

Part number: T1-SFP-10G25G-SR

Overview

T1-SFP-10G25G-SR is an SFP28 module for duplex optical data, and communications up to 25.78Gbps, including an SFP28 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C. T1-SFP-10G25G-SR also features a built-in clock and data recovery (CDR), is designed for multi-mode fiber, and operates at a nominal wavelength of 850 nm. The transmitter section uses a Vertical Cavity Surface Emitted Laser (VCSEL) and is a Class 1, laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated GaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.

Specifications

Get the T1-SFP-10G25G-SR specifications sheet including the following characteristics:

Regulatory Compliance Absolute Maximum Ratings
Recommended Operating Conditions and Power Supply Requirements Optical Characteristics – Transmitter
Digital Diagnostic Function Recommended Circuit
Mechanical Dimensions Pin Assignment and Description

REQUEST SPECIFICATIONS SHEET
